Atlas kits - Zkteco

Security Redefined

OSDP certified and powered by Armatura readers

Atlas Kits Overview

 We offer two comprehensive kits designed for efficient and secure access control using the powerful Atlas460 controller. Each kit includes essential components to manage up to four doors with ease and reliability.

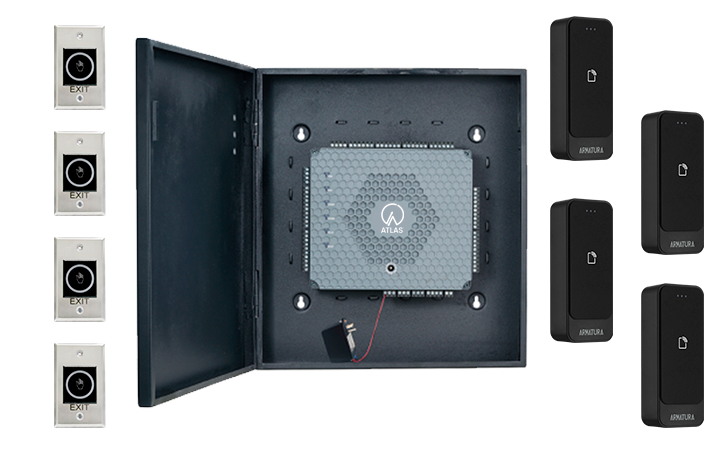

Atlas460-RF-Kit

This kit is ideal for RFID-based access control solutions. It includes:

  • 1 × Atlas 460 controller

  • 4 × EP10 RFID readers

  • 4 × Push buttons for door exit

  • 1 × Metal enclosure with built-in power supply

Best suited for environments where RFID cards or tags are used for authentication.

Atlas460-FP-Kit

This kit provides enhanced security through biometric access. It includes:

  • 1 × Atlas 460 controller

  • 4 × EP30 fingerprint readers

  • 4 × Push buttons

  • 1 × Metal box with power supply

  • 1 × SLK20R Fingerprint Enrollment Reader for convenient biometric user registration

Ideal for facilities requiring higher identity verification standards, such as labs, offices, or secure warehouses.

Not sure which controller fits your project?

Choosing the right access controller is essential to ensuring the scalability, security, and efficiency of your system. Whether you need to manage one door or multiple zones, each controller offers specific features tailored to different needs.

Comparison Atlas panels

Controllers Atlas160 Atlas260 Atlas460
Number of Doors Controlled One door Two doors Four doors
Number of Readers Supported 2 (OSDP Readers) or
2 (Fingerprint Readers)		 4 (OSDP Readers) or
2 (Fingerprint Readers)		 4 (OSDP Readers) and
4 (Fingerprint Readers)
Recommended Readers EP Series from Anviz EP Series from Anviz EP Series from Anviz
Number of Inputs 4 (Exit Device, Door Contact and 2 Aux) 6 (Exit Devices, 2 Door Contacts and 2 Aux) 10 (4 Exit Devices, 4 Door Contacts and 2 Aux)
Number of Outputs 2 (1 Form C relay for lock and 1 Form relay for Aux output) 3 (2 Form C relays for locks and 1 Form relay for Aux output) 5 (4 Form C relays for locks and 1 Form relay for Aux output)
User Capacity 5,000 (Fingerprints and/or card users) 5,000 (Fingerprints and/or card users) 5,000 (Fingerprints and/or card users)
Fingerprint Template Capacity 5,000 (up to 10 fingerprints per user) 5,000 (up to 10 fingerprints per user) 5,000 (up to 10 fingerprints per user)
Logs 10,000 transactions plus unlimited archive downloads 10,000 transactions plus unlimited archive downloads 10,000 transactions plus unlimited archive downloads
Weight 3.8 kg 4.2 kg 4.2 kg
Communication TCP/IP, Wi-Fi, Wiegand, OSDP TCP/IP, Wi-Fi, Wiegand, OSDP TCP/IP, Wi-Fi, Wiegand, OSDP
Browsers Supported Chrome, Firefox, Edge, Safari Chrome, Firefox, Edge, Safari Chrome, Firefox, Edge, Safari
Metal Box Powder Coated Aluminum Powder Coated Aluminum Powder Coated Aluminum
Mounting DIN Rail DIN Rail DIN Rail
Recommended Power Supply 12V DC, 2A (Optional POE Power) 12V DC, 2A (Optional POE Power) 12V DC, 2A (Optional POE Power)
Dimensions (Panel Only) 160 mm x 140 mm 197 mm x 71 mm 197 mm x 71 mm
Cabinet 380 mm (L) x 80 mm (W) x 280 mm (H) 380 mm (L) x 80 mm (W) x 280 mm (H) 380 mm (L) x 80 mm (W) x 280 mm (H)
Working Temperature -32°F to 122°F (0°C~50°C) -32°F to 122°F (0°C~50°C) -32°F to 122°F (0°C~50°C)
